NanoPix
Intraoral Digital Imaging Sensor
< 6s
To complete entire imaging process
AED Technology
(Automatic Exposure Detection)
CMOS Technology

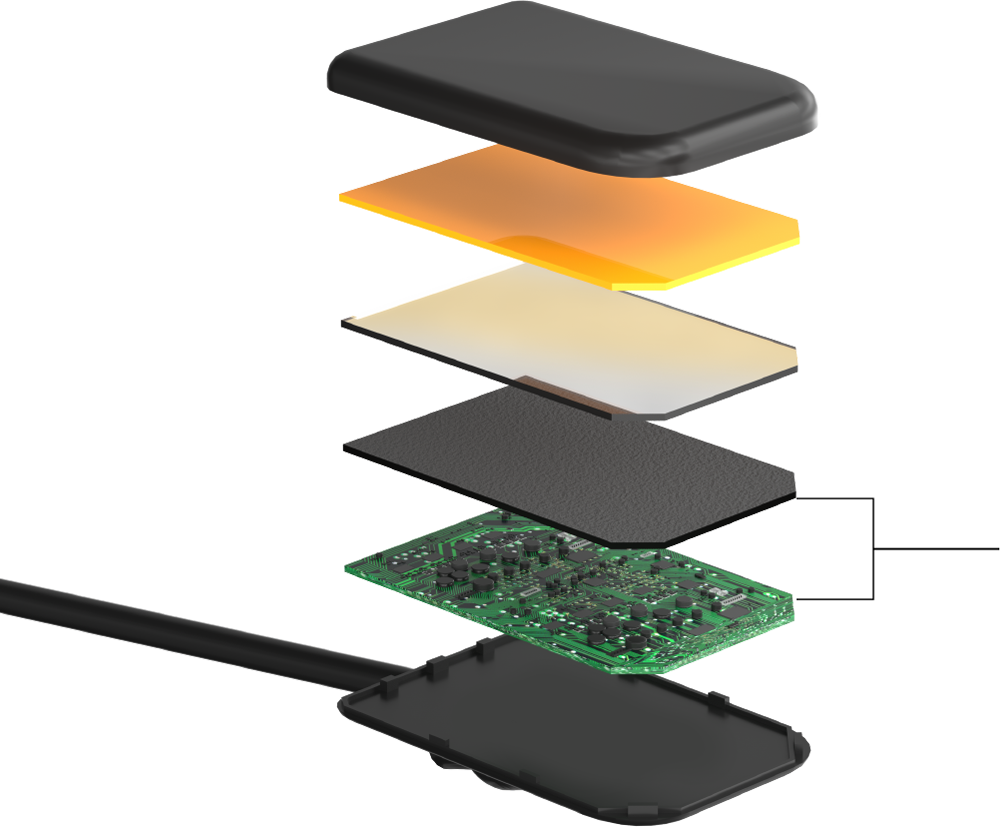

Direct Deposition CSI Technology
All-in-one
Ergonomic design

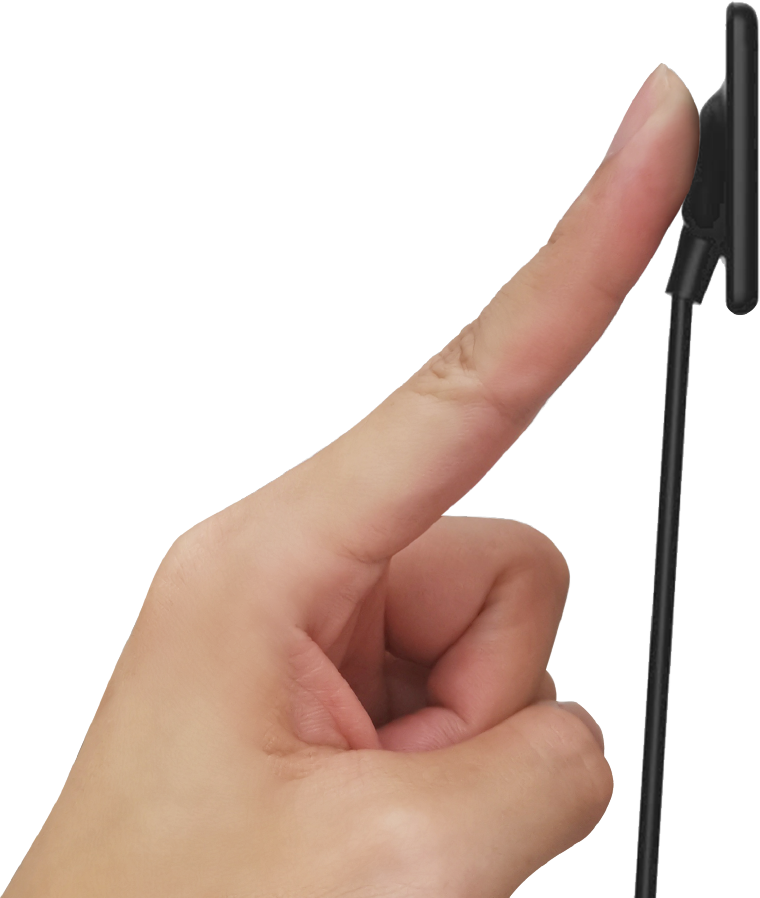

Ultra-thin body design
4.5 mm – thin X-Ray sensor
Specifications(available in 2 sizes):
| NanoPix1 | NanoPix2 | |
| Detector Technology | CMOS | CMOS |
| Scintillator | CsI | CsI |
| Theoretical Resolution | 25lp/mm | 25lp/mm |
| Measured Resolution | >12lp/mm | >12lp/mm |
| Active Area (mm) | 20*30 | 26*36 |
| Mechanical Size(mm) | 25*38.5*4.5 | 31.6*45*4.5 |
| AD Conversion(bit) | 16 | 16 |
| Data Interface | USB 2.0 | USB 2.0 |
| Protection(intraoral part of sensor) | IP68 | IP68 |
After software installation and setting,

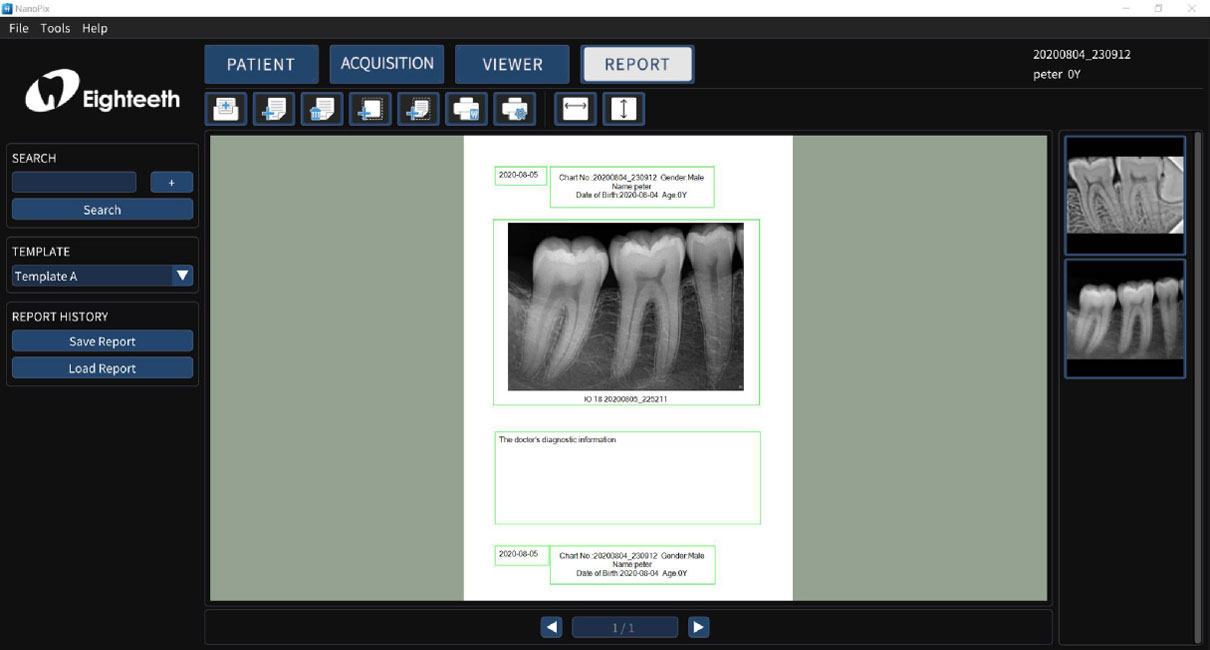

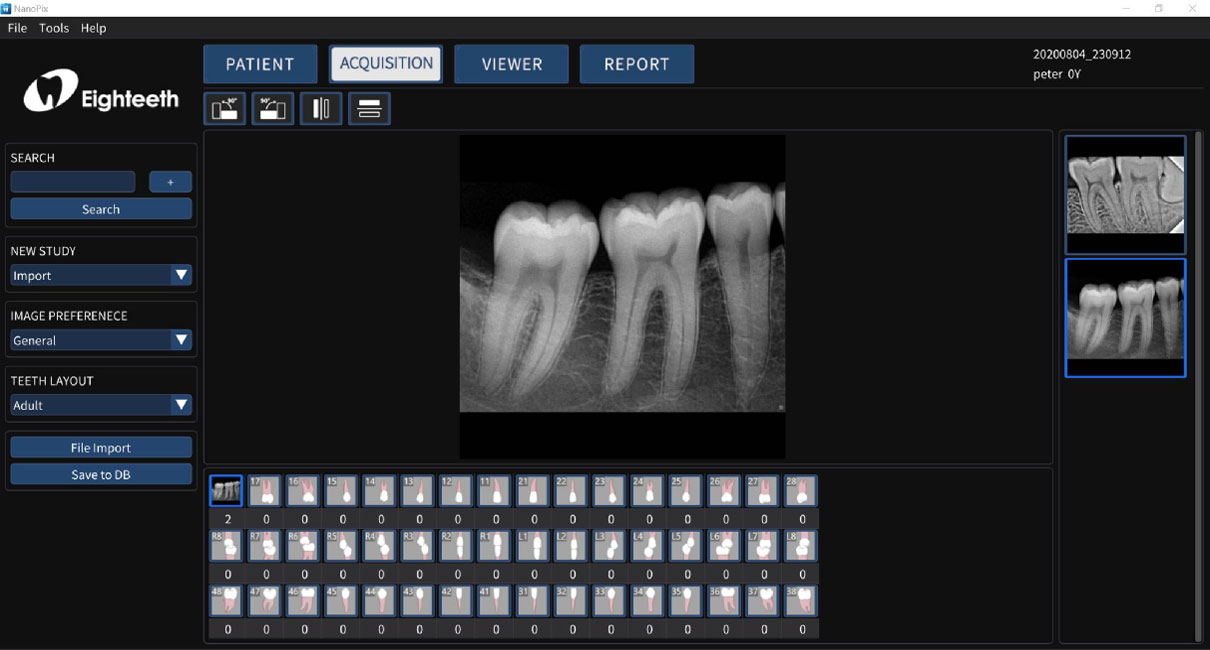

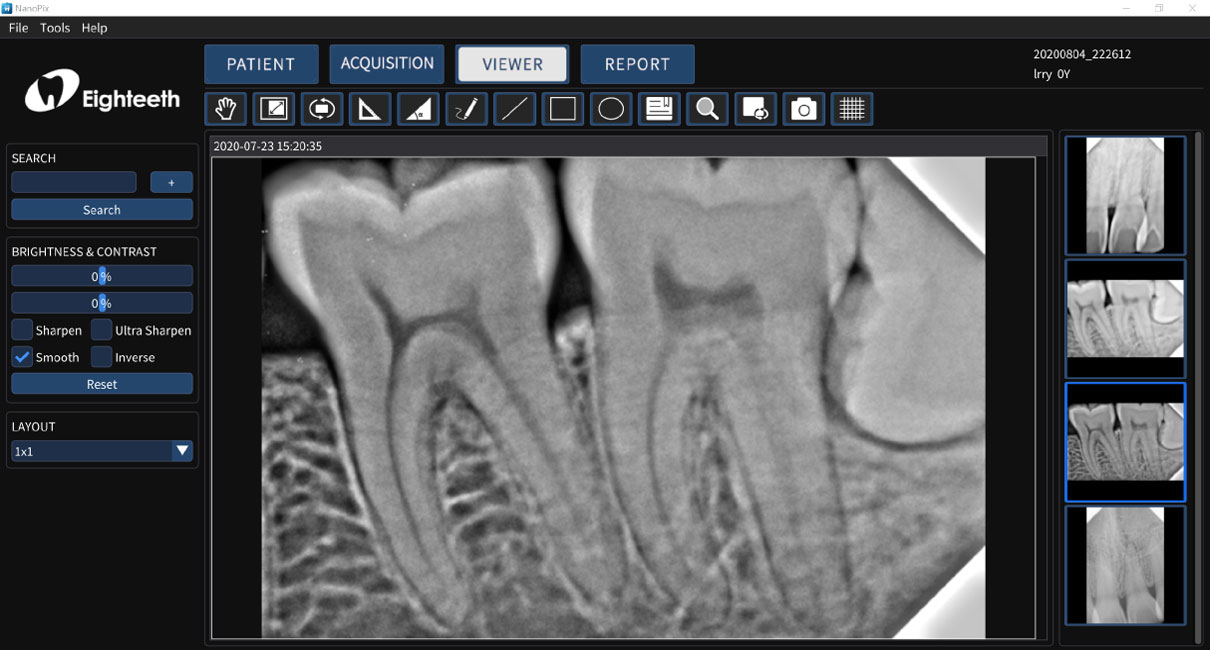

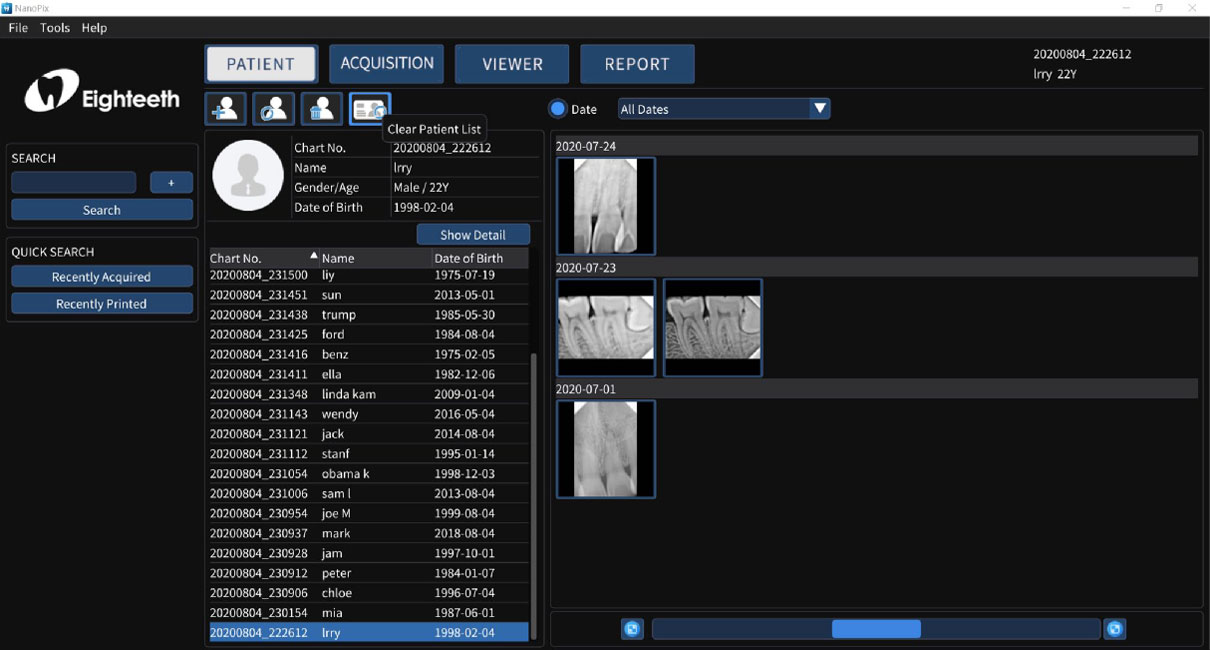

4 steps are taken to generate your report:
